For Firmware V1.1

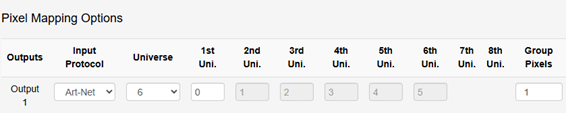

When grouping pixels, ensure the mapped pixels reflect the total number of pixels on the strip you’re trying to control.

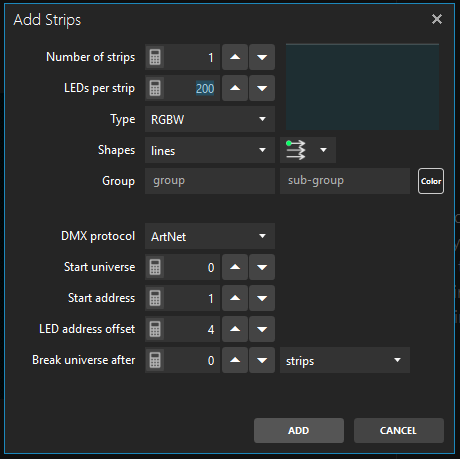

The Pixelator Mini Mk2 will attempt to autofill the Mapped Pixels based on your chosen Color Order. When this happens, the autofill function may cut off some of the pixels you are trying to control. This will cause an issue where the total number of pixels, in ELM, won’t translate to the physical pixels.

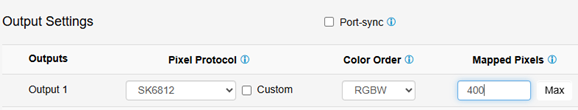

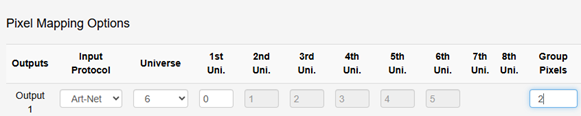

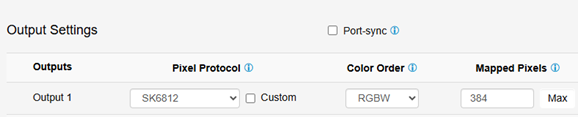

To fix this issue, change the total mapped pixels in the PIXELATOR settings page to the same number of pixels you are trying to control, then click save. For example, when trying to control 400 RGBW pixels with a grouping of two, the Pixelator Mini Mk2 will autofill the total mapped pixels to 384 pixels. Changing this setting to the desired 400 pixels will allow you to control the full strip.
