DIN Ethergate Mk2 — User Manual

Two-port bi-directional eDMX - DMX/RDM gateway in a compact 4-module DIN-rail form factor.

⚠️ Safety

Ensure you are familiarized with all key information within this guide and other relevant ENTTEC documentation before specifying, installing, or operating an ENTTEC device. If you are in any doubt about system safety, or you plan to install ENTTEC device in a configuration that is not covered within this guide, contact ENTTEC or your ENTTEC supplier for assistance.

⚠️ Heads up: ENTTEC’s return to base warranty for this product does not cover damage caused by inappropriate use, application, or modification to the product.

⚡ Electrical Safety

• This product must be installed in accordance with applicable national and local electrical and construction codes by a person familiar with the construction and operation of the product and the hazards involved. Failure to comply with the following installation instructions may result in death or serious injury.
• Do not exceed the ratings and limitations defined in the product datasheet or this document. Exceeding can cause damage to the device, risk of fire and electrical faults.
• Ensure that no part of the installation is or can be connected to power until all connections and work is complete.
• Before applying power to your installation, ensure your installation follows the guidance within this document. Including checking that all power distribution equipment and cables are in perfect condition and rated for the current requirements of all connected devices and factor in overhead as well as verifying that it is appropriately fused, and voltage is compatible.
• Remove power from your installation immediately if accessories power cables or connectors is in any way damaged, defective, shows signs of overheating or are wet.
• Provide a means of locking out power to your installation for system servicing, cleaning, and maintenance. Remove power from this product when it is not in use.
• Ensure your installation is protected from short circuits and overcurrent. Loose wires around this device whilst in operation, this could result in short circuiting.
• Do not over stretch cabling to the device’s connectors and ensure that cabling does not exert force on the PCB.
• Do not ‘hot swap’ or ‘hot plug’ power to the device or its accessories.
• Do not connect any of this device’s V- (GND) connectors to earth.
• Do not connect this device to a dimmer pack or mains electricity.

⚠️ System Planning and Specification

• To contribute to an optimal operating temperature, where possible keep this device out of direct sunlight.
• Any twisted pair, 120ohm, shielded EIA-485 cable is suitable to transmit DMX512 data to or from the DIN ETHERGATE MK2. The DMX cable should be suitable for EIA-485 (RS-485) with one or more low capacitance twisted pairs, with overall braid and foil shielding. Conductors should be 24 AWG (7/0.2) or larger for mechanical strength and to minimize volt drop on long lines.
• A maximum of 32 devices should be used on a DMX line before re-generating the signal using a DMX buffer/ repeater / splitter.
• Always terminate DMX chains using a 120Ohm resistor to stop signal degradation or data bounce-back.
• The maximum recommended DMX cable run is 300m (984ft). ENTTEC advises against running data cabling close to sources of electromagnetic interference (EMF) i.e., mains power cabling / air conditioning units.
• This device has an IP20 rating and is not designed to be exposed to moisture or condensing humidity.
• Ensure this device is operated within the specified ranges within its product datasheet.

⚠️ Protection from Injury During Installation

• Installation of this product must be performed by qualified personnel. If ever unsure always consult a professional.
• Always work with a plan of the installation that respects all system limitations as defined within this guide and product datasheet.
• Keep the DIN ETHERGATE MK2 and its accessories in its protective packaging until final installation.
• Note the serial number of each DIN ETHERGATE MK2 and add it to your layout plan for future reference when servicing.
• All network cabling should be terminated with an RJ45 connector in accordance with the T-568B standard.
• Always use suitable personal protective equipment when installing ENTTEC products.
• Once installation is completed, check that all hardware and components are securely in place and fastened to supporting structures if applicable.

⚠️ Installation Safety Guidelines

• The device is convection cooled, ensure it receives sufficient airflow so heat can be dissipated.
• Do not cover the device with insulating material of any kind.
• Do not operate the device if the ambient temperature exceeds that stated in the device specifications.
• Do not cover or enclose the device without a suitable and proven method of dissipating heat.
• Do not install the device in damp or wet environments.
• Do not modify the device hardware in any way.
• Do not use the device if you see any signs of damage.
• Do not handle the device in an energized state.
• Do not crush or clamp the device during installation.
• Do not sign off a system without ensuring all cabling to the device and accessories has been appropriately restrained, secured and is not under tension.

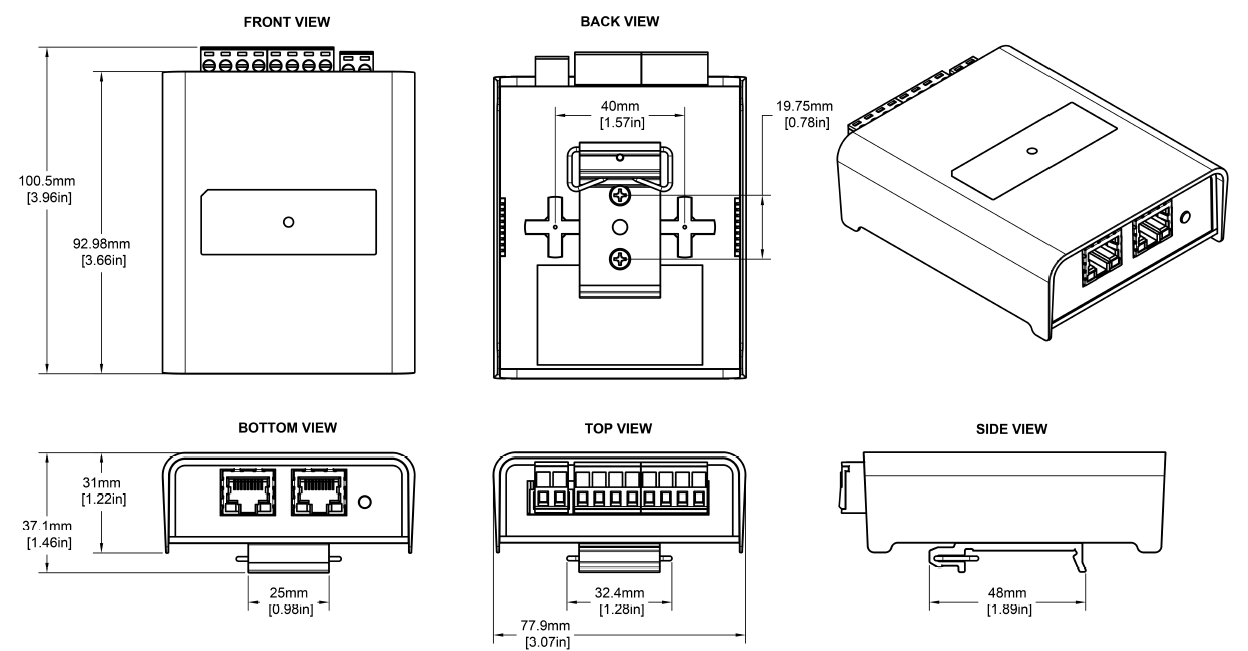

Physical Dimensions

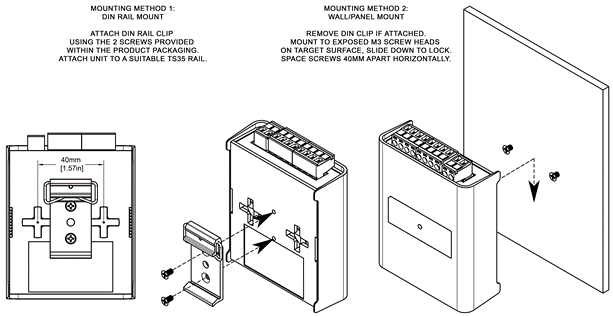

Mounting Options

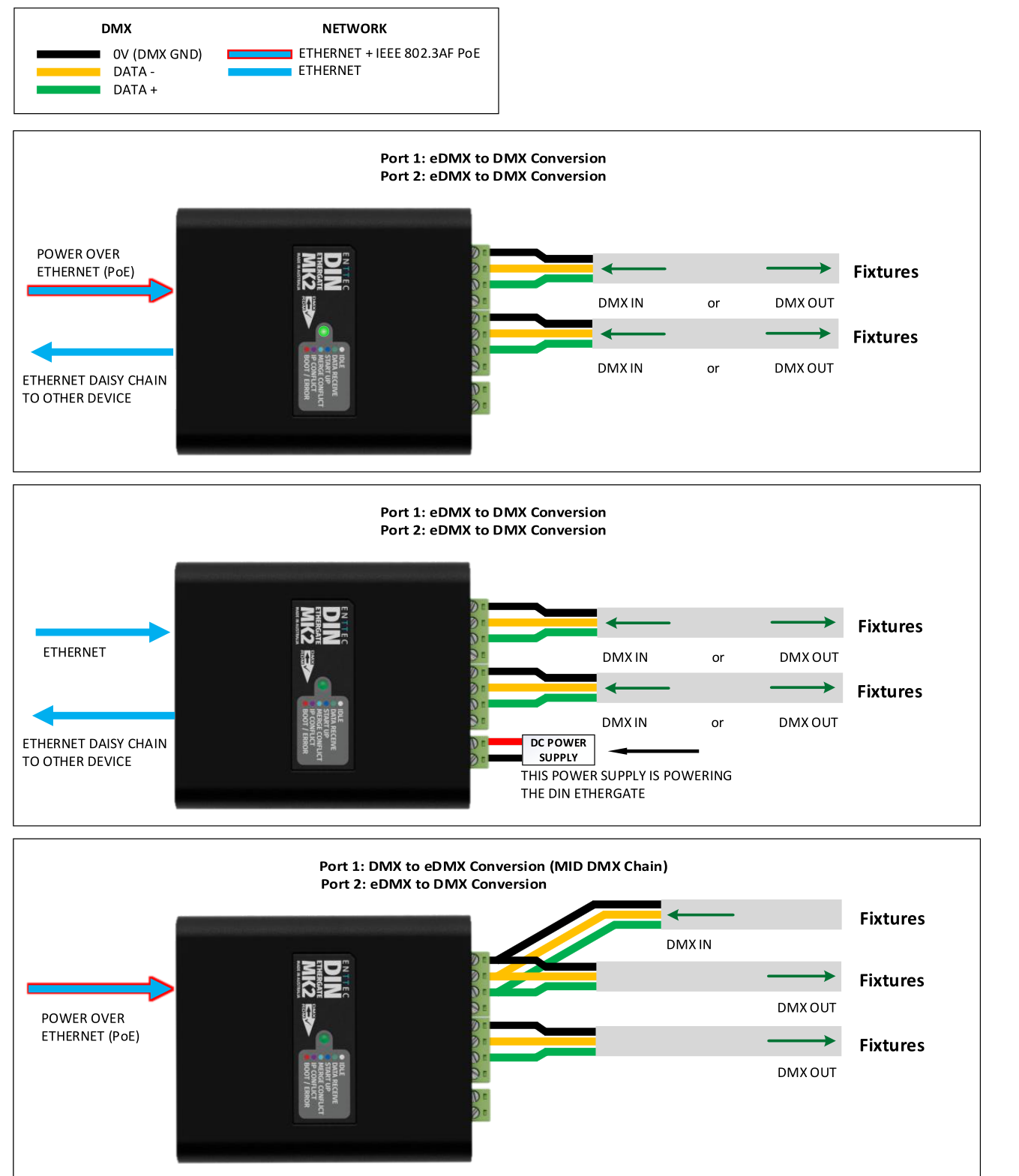

Wiring Diagrams

• ⚠️ To reduce the likelihood of voltage or Electro Magnetic Interference (EMI) being induced on the DMX lines, where possible, run control cabling away from mains electricity or devices that produce high EMI, (i.e., air conditioning units).
• To ensure a reliable connection, ENTTEC recommends the use of cable ferrules for all stranded cables connected to the DIN ETHERGATE MK2’s screw terminals.
• The DIN ETHERGATE MK2’s RJ45 network connector accepts cabling terminated to the TIA/EIA networking standard.
• Network cabling should be terminated with an RJ45 connector in accordance with the T-568B standard.
• The DIN ETHERGATE MK2 supports IEEE802.3af PoE only (active 48v).
• The maximum cable distance DMX can be run without re-buffering is 300m (ft 984ft).
• Never exceed 32 devices in a DMX chain without an intermediary DMX splitter or buffer (i.e. ENTTEC’s DIN RDS4).

Functional Features

• 2 Universes DMX-512A with E1.20 RDM support.
• Support for Art-Net, sACN, ESP and KiNet to DMX conversion.
• Overdrive mode outputs at higher data transmission rate selectable 500K (default), 750K or 1000K, allowing control of up to 8 Universes per port
• HTP/LTP merging support for simultaneous DMX sources.
• Configurable DMX output refresh rate.
• Intuitive device configuration and updates through the inbuilt web interface.
• ‘Current Port Buffer’ allows live DMX values to be viewed.

Bi-directional eDMX Protocols and USITT DMX512-A Conversion

The DIN ETHERGATE MK2’s primary functionality is to convert between Ethernet-DMX protocols and USITT DMX512-A (DMX). The DIN ETHERGATE MK2 supports eDMX protocols including Art-Net, sACN, ESP and KiNet which can be received and converted to DMX with the HTP or LTP Merging options, or DMX converted to eDMX protocols with the options to Unicast or Broadcast/Multicast.

Art-Net <-> DMX (RDM Supported): Art-Net 1, 2, 3 & 4 are supported. Universe in the range of 0 to 32767.

RDM (ANSI E1.20): When the DIN ETHERGATE MK2 port type is set to ‘DMX Out (RDM), it allows ART-RDM.

This allows the DIN ETHERGATE MK2 to act as a gateway, facilitating the discovery, configuration, and monitoring of RDM-enabled devices on the DMX line by RDM solutions.

⚠️ Note:

• The device functions as a gateway and does not support remote configuration through Art-Net.
• ENTTEC advises disabling RDM when not needed for your fixtures. Older fixtures compatible with the DMX 1990 Specification may exhibit erratic behaviour with RDM packets present on the DMX line.

sACN <-> DMX: Universe in the range 0 to 63999. sACN priority of the output can be defined (default priority: 100). The DIN ETHERGATE MK2 supports a maximum of 1 multicast universe with sACN sync. (i.e. both universe outputs set to the same universe).

ESP <-> DMX: Universe in the range 0 to 255.

KiNet <-> DMX: Universe in the range 0-65534. Optional 65535 being any universe.

The additional flexibility that the DIN ETHERGATE MK2 can provide, means that each of the two ports can be configured individually:

• Both outputs can be specified to use the same universe and protocol, i.e., both outputs can be set to output use universe 1.
• Each output is not required to be sequential i.e. port one can be set to universe 10, port two can be set to input universe 3.
• Protocol or data conversion direction doesn’t have to be the same for each port.

Merging

Merging is available when the DIN ETHERGATE MK2 port type is set to ‘DMX Out’. Two different Ethernet-DMX sources (from different IP addresses) values can be merged if the source is the same protocol and universe.

When Merging is disabled, only one source is permitted, whereas HTP/LTP allows for two sources. If the DIN ETHERGATE MK2 receives more sources than anticipated the extra sources (eg if set to HTP then the 3rd source) will be ignored. In such instances, the DIN ETHERGATE MK2 will display a warning on the home page of the web interface, and the status LED will display a static Cyan colour.

Whilst set to HTP or LTP merging, if either one of the 2 sources stop being received, the failed source is held in the merge buffer for 4 seconds. If the failed source returns the merge will continue, otherwise it will be discarded.

Merging options include:

• None: No Merging. Only one source should be sending to the DMX output.
• HTP Merge: Highest Takes Precedence. Channels are compared one to one and the highest value is sent on the output.
• LTP Merge: Latest Takes Precedence. The source with the latest change in data is used as the output.

Overdrive Mode

Overdrive mode will change the output from standard DMX512-A to DMX1000K, DMX Overdrive at a selectable data transmission rate of 500K (default), 750K or 1000K. This mode significantly enhances control capabilities for specialised fixtures equipped with DMX512 differential parallel protocol LED driver chips enabling control of more than 512 channels.

The DIN ETHERGATE MK2's overdrive mode is engineered to allow compatible fixtures to expand the addressable channels up to 4,096 with 8 universes per port. In comparison, standard DMX512-A, operating at 250Kbps, controls 512 channels per port.

The ENTTEC DMX Neon Flex [73060] is a compatible fixture supporting overdrive mode (DMX500K, DMX750K or DMX1000K)

⚠️ Note:

• It's essential to confirm that your lighting control equipment or compatible fixtures can accurately decode DMX data transmission at 500Kbps (DMX500K), 750Kbps (DMX750K) or 1000Kbps (DMX1000K)
• Please be aware that DMX500K, DMX750K and DMX1000K are incompatible with DMX512-A and do not conform to ANSI E1.11 – 2024. Use of DMX overdrive with unsupported fixture types can lead to unpredictable behaviour.
• At 1000Kbps, the maximum refresh rate is 44FPS for up to 4 universes, and 22FPS at 8 universes.

Maximum Refresh Rate (FPS) Full refresh rate table:

Hardware Features

• Dual bi-directional DMX ports.
• Dual Ethernet ports for expandable network daisy-chaining through Ethernet connections.
• Forward facing LED status indicator. Network link & activity LED indicator built into RJ45 ports.
• Electrically insulated ABS plastic housing.
• Surface mount or TS35 DIN mount (using included DIN Clip accessory).
• IEEE 802.3af PoE (Power over Ethernet) or 12-24v 2 Pin DC power input.

Phoenix Pin Out

The DIN ETHERGATE MK2 is equipped with two 4-Pin Phoenix Connectors that can function as either DMX input or DMX output, based on the settings configured in the Web Interface.

These connectors adhere to the DMX standard (0V, Data-, and Data+), and include an extra port named "Term." When using the DIN ETHERGATE MK2 as a DMX to eDMX converter, the TERM port substitutes the Data+ port and serves to terminate the DMX line.

PoE (Power over Ethernet)

The DIN ETHERGATE MK2 supports IEEE 802.3af Power over Ethernet to the ‘Ethernet In’ Port. This allows the device to be powered via the RJ45 Ethernet connection, reducing the number of cables and the ability to remotely deploy the DIN ETHERGATE MK2 without the need for a local power source close to the device.

PoE can be introduced to the Ethernet cable, either through a network switch which outputs PoE under the IEEE 802.3af standard, or through an IEEE 802.3af PoE injector.

⚠️ Note:

• DC power input takes precedence over PoE. If the DC power is disconnected, the device will typically switch to PoE in about 3 seconds.
• Passive PoE is not compatible with the DIN ETHERGATE MK2.
• When daisy chained in series, only first device will receive POE. Subsequent device requires PoE injector individually to be powered over ethernet port.

LED Status Indicator

DIN ETHERGATE MK2 comes with a forward facing RGB LED indicator. The LED signifies the related activity:

Out of the Box

The DIN ETHERGATE MK2 device default settings as below:

• Device Name: DIN ETHERGATE MK2
• DHCP is enabled.
• Static IP: 192.168.0.10 / Netmask: 255.255.255.0.
• Both ports are set to DMX OUT (RDM).
• Protocol is set to Art-Net.
• Refresh rate is 40fps.
• Merging is None.
• Port 1 Universe 0.
• Port 2 Universe 1.

Networking

The DIN ETHERGATE MK2 can either be configured to be a DHCP or Static IP address.

DHCP: On power up and with DHCP enabled, if the DIN ETHERGATE MK2 is on a network with a device/router with a DHCP server, the DIN ETHERGATE MK2 will request an IP address from the server. If the DHCP server is slow to respond, or your network does not have a DHCP server, the DIN ETHERGATE MK2 will fall back to the default IP address 192.168.0.10 and netmask 255.255.255.0. If a DHCP address is provided, this can be used to communicate with the DIN ETHERGATE MK2.

Static IP: By default (out of the box) the Static IP address will be 192.168.0.10. If the DIN ETHERGATE MK2 has DHCP disabled, the Static IP address given to the device will become the IP address to communicate with the DIN ETHERGATE MK2. The Static IP address will change from the default once it’s modified in the web interface. Please note down the Static IP address after setting.

⚠️ Note: When configuring multiple DIN ETHERGATE MK2’s on a Static network; to avoid IP conflicts, ENTTEC recommends connecting one device at a time to the network and configuring an IP.

• If using DHCP as your IP addressing method, ENTTEC recommends the use of the sACN multicast, or Art-Net Broadcast. This will ensure that your DIN ETHERGATE MK2 continues to receive data if the DHCP server changes its IP address.
• ENTTEC does not recommend unicasting data to a device with its IP address set through DHCP server on long-term installations.

Web Interface

Configuring the DIN ETHERGATE MK2 is done through a web interface which can be brought up on any modern web browser. A Chromium based browser (i.e. Google Chrome) is recommended for accessing the DIN ETHERGATE MK2 web interface.

Identified IP address: If you are aware of the DIN ETHERGATE MK2 IP address (either DHCP or Static), then the address can be typed directly into the web browsers URL field.

Unidentified IP address: If you are not aware of the DIN ETHERGATE MK2’s IP address (either DHCP or Static) the following discovery methods can be used on a local network to discover devices:

• ENTTEC EMU software (available for Windows and MacOS), which will discover ENTTEC devices on the Local Area Network, will display their IP addresses and open to the Web Interface before opting to configure the device.
• An IP scanning software application (i.e. Angry IP Scanner) can be run on the local network to return a list of active devices on a local network.
• Devices can be discovered using Art Poll (i.e. DMX Workshop if set to use ArtNet).
• The device Default IP address 192.168.0.10 is printed on the physical label on the rear of the product.

⚠️ Note:

• As the DIN ETHERGATE MK2 is hosting a web server on the local network and does not feature an SSL Certificate (used to secure online content), the web browser will display the ‘Not secure’ warning, this is to be expected.
• Ensure the controller and configuration device for the DIN ETHERGATE MK2 share the same LAN and IP address range. For example, if the DIN ETHERGATE MK2 is set to 192.168.0.10, your computer should be around 192.168.0.20. Keep consistent Subnet Mask settings across all network devices.

Top Menu

The top menu grants easy access to all DIN ETHERGATE MK2 web pages, with the active page highlighted in blue.

The top right corner of the window features 2 installer-friendly buttons:

• Dark Mode: User interface view option that presents content on a dark background.
• Identify: This button on the webpage identifies compatible fixtures for Overdrive mode are correctly connected to a specific DIN ETHERGATE MK2 by sending all channels to 100%.
• Note: The timer will not restart when pressed consecutively.

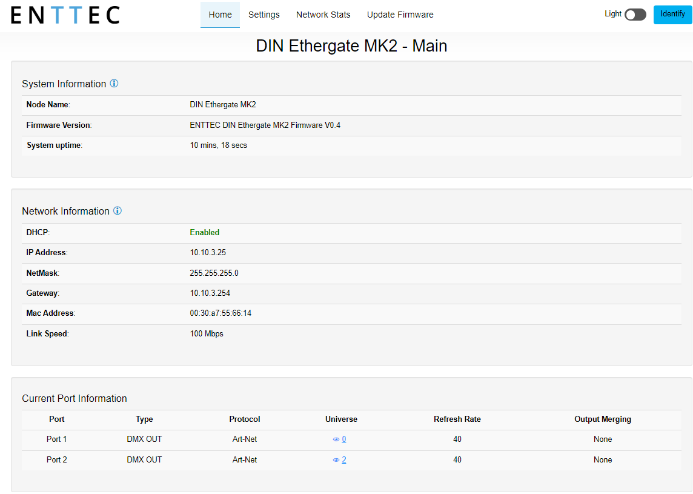

Home

The landing page for the DIN ETHERGATE MK2 web interface is the Home tab. This tab is designed to give you a read-only device overview. This will display:

System Information:

• Node Name
• Firmware Version
• System Uptime

Current Network Settings:

• DHCP Status
• IP Address
• NetMask
• Gateway Address
• Mac Address
• Link Speed

Current Port Settings:

• Port
• Type
• Protocol
• Universe: it displays a snapshot of all current DMX values by clicking the universe number
• Refresh Rate
• Output Merging

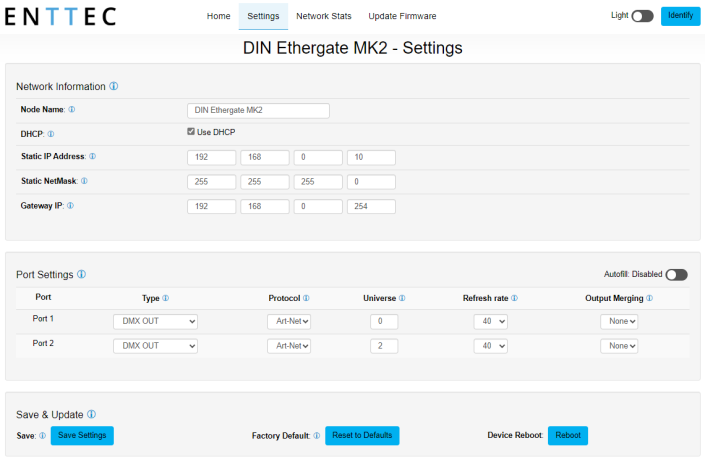

Settings

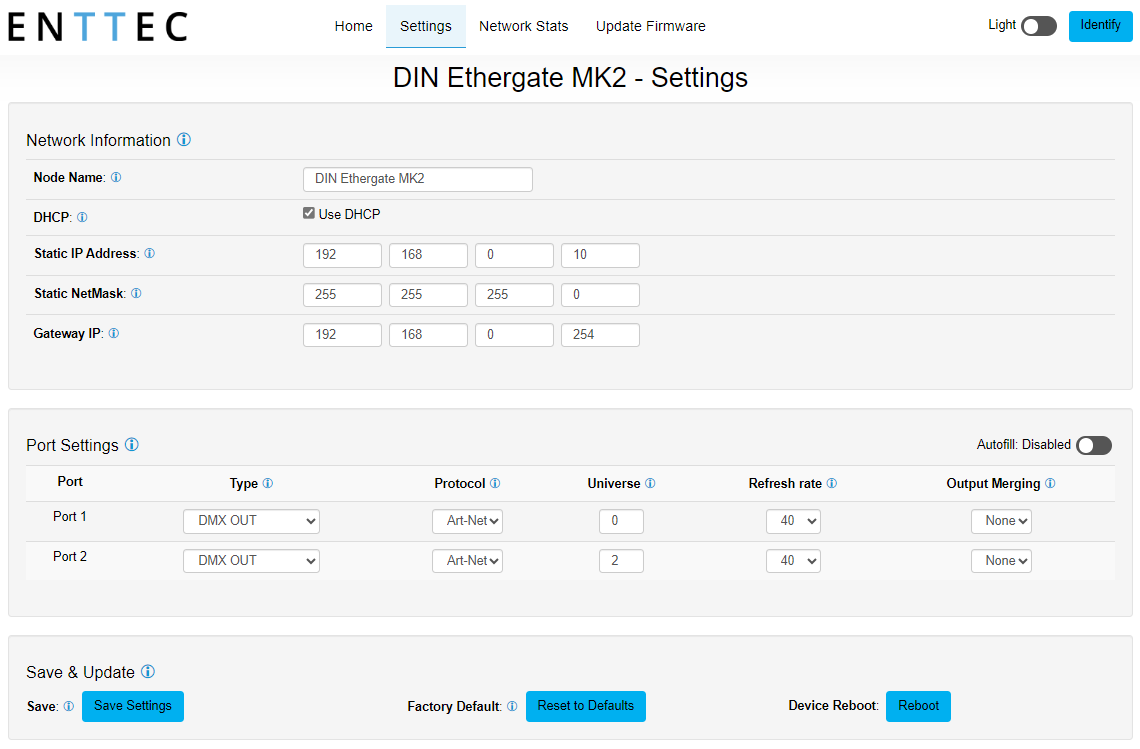

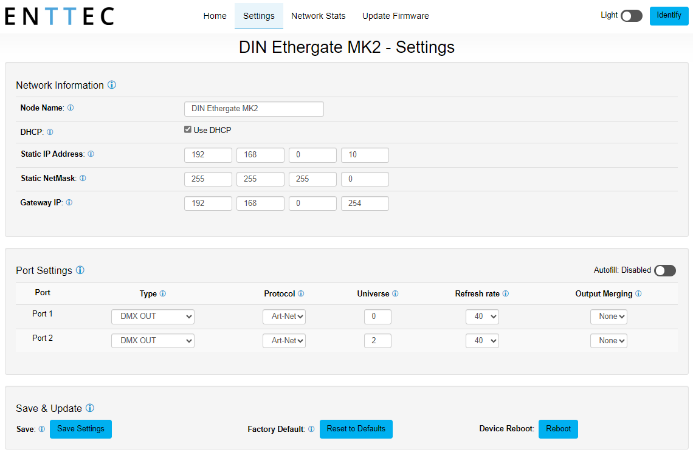

The DIN ETHERGATE MK2 settings can be configured within the Settings tab. Changes will only take affect after being saved; any unsaved changes will be discarded.

Node Name: The name the DIN ETHERGATE MK2 will be discoverable with in Poll replies.

DHCP: Enabled by default. When enabled, the DHCP server on the network is expected to automatically provide the IP address to the DIN ETHERGATE MK2. If no DHCP router/server is present or DHCP is disabled, the DIN ETHERGATE MK2 will fall back to 192.168.0.10.

Static IP Address/Static NetMask/Gateway: These are used if DHCP is disabled. These options set the Static IP address. These settings should be set to be compatible with other devices on the network.

Port Settings: This is where users can set individual port configuration or enable the ‘Autofill’ function to manage group port settings. Any port settings after the one changed will autofill to match unless it has already been changed. Autofill isn't applied to DMX universes.

Type: Choose from the following options:

• Disabled – will not process any DMX (input or output).
• DMX IN – Will convert DMX from the DMX ports to an Ethernet-DMX protocol.
• DMX OUT – Will convert an Ethernet-DMX protocol to DMX output.
• DMX OUT (RDM) – This allows the DIN ETHERGATE MK2 to act as a gateway using ArtRDM. More information can be found in the Functional Features section of this document.

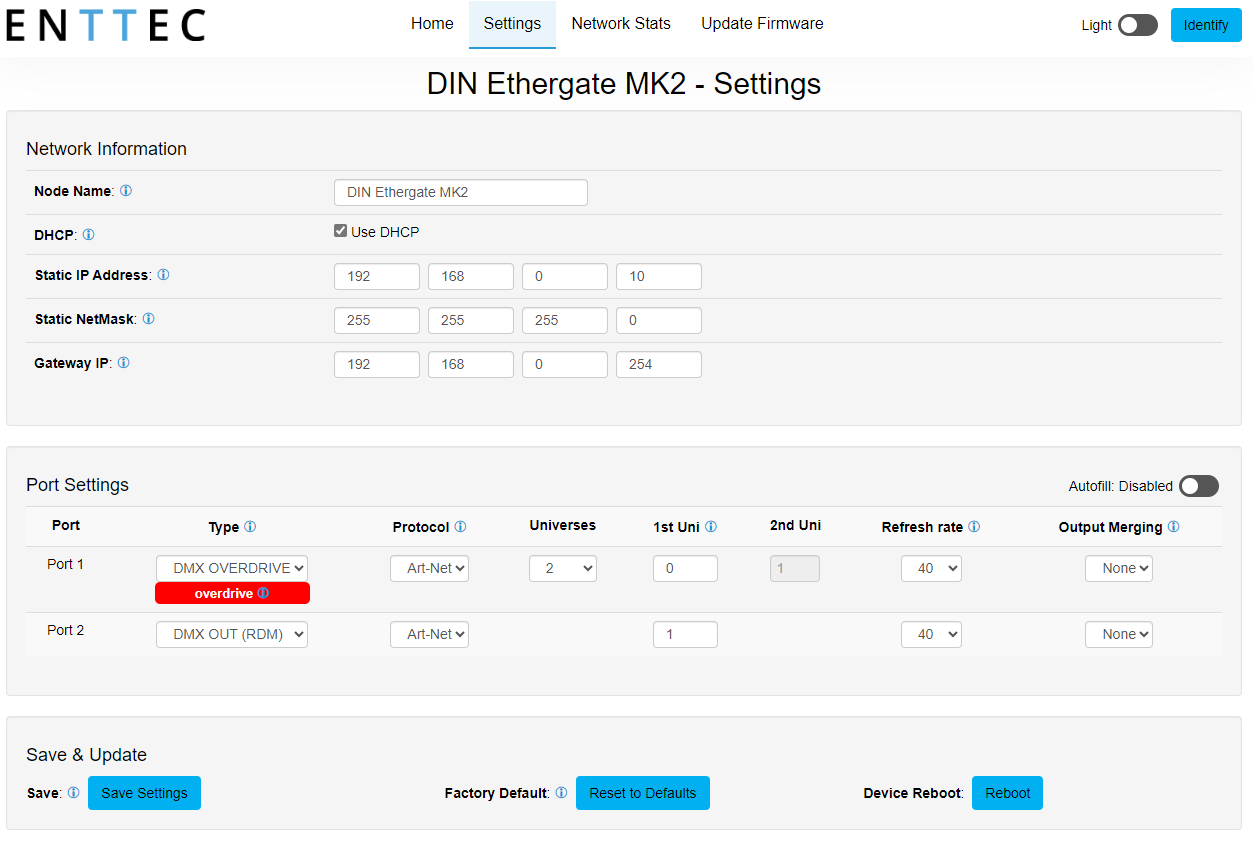

• DMX OUT (OVERDRIVE) – This changes data output rate to 1000 Kbps (DMX1000K) which allows up to 8 Universes per port on compatible fixtures only.
• Protocol: Choose between Art-Net, sACN, ESP and KiNet as the Protocol.

Universe: Set the Ethernet-DMX protocol’s input Universe. Universe value range can be found in the Functional Features section of this document.

Refresh Rate: The rate at which the DIN ETHERGATE MK2 will output the Data from its DMX port (default 40 Frames per second). It will repeat the last received frame to comply with DMX standard.

Options: additional configuration is available depending on port type and protocol.

• Input Broadcast/Unicast: Choose either broadcasting or a specified unicast IP address. Broadcast address is based on the subnet mask shown. Unicast allows you to define a specific single IP address.
• Input sACN Priority: sACN Priorities range from 1 to 200, where 200 has the highest priority. If you have two streams on the same Universe, but one has the default priority of 100 and the other has a priority of 150, the second stream will override the first.
• Output Merging: When enabled, this allows merging for two DMX sources from different IP address whilst sending on the same Universe in either a LTP (Latest Takes Precedence) or HTP (Highest Takes Precedence) merge. More information can be found in the Functional Features section of this document.

Save Settings: All changes must be saved to take effect.

Reset to Defaults: Restore the DIN ETHERGATE MK2 to the factory default. Refer Out of the Box section in this document for more details.

Reboot: This allows rebooting the device without physically access to the device. When the web interface page refreshes the DIN ETHERGATE MK2 is ready.

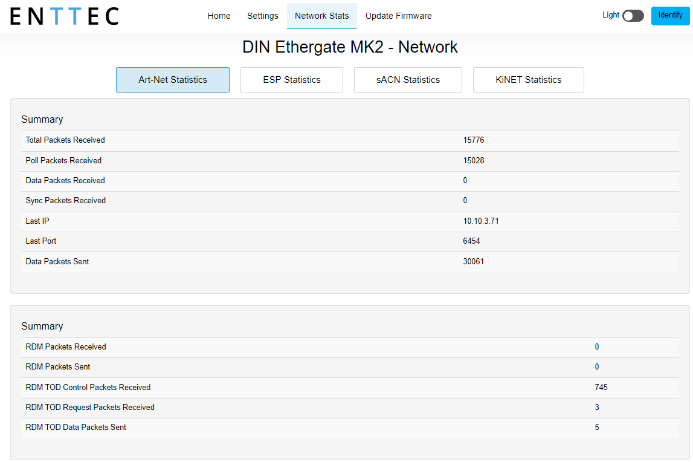

Network Stats

The Network Stats tab is designed to provide an overview of network data. This is categorised into DMX over Ethernet protocols statistics which can be located within the tabs.

The Summary provides details regarding total poll, data or sync packets depending on the protocol.

Art-Net Statistics also provide a breakdown of Art-Net DMX packets sent and received. As well as a breakdown of RDM over Art-Net packets including packet sent and received, sub device and TOD Control/Request packets.

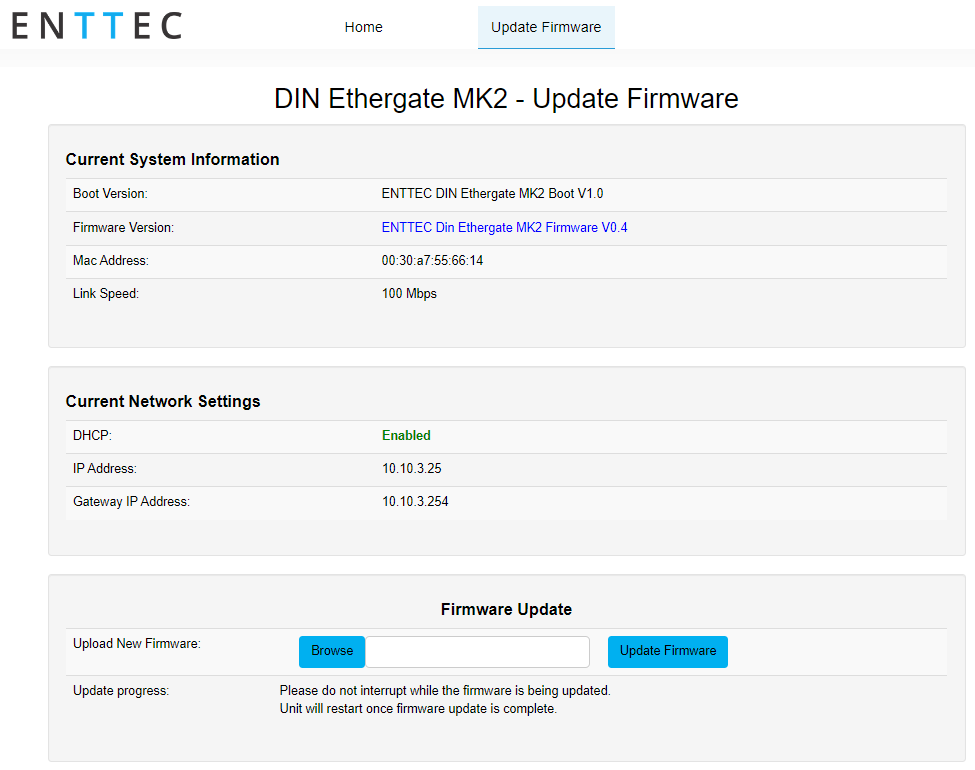

Update Firmware

When selecting the Update Firmware tab, the DIN ETHERGATE MK2 will stop outputting and the web interface boots into the Update Firmware mode. It may take a while depending on the network setting. An error message is expected as the webpage is temporary unavailable in boot mode.

This mode will display basic information regarding the device including current Firmware Version, Mac Address and IP address information.

The latest firmware can be downloaded from www.enttec.com. Use the Browse button to access in your local computer for the latest DIN ETHERGATE MK2 firmware file which has a .bin extension.

Next click on the Update Firmware button to begin updating.

After the update has completed, the web interface will load the Home tab, where you can check the update was successful under Firmware Version. Once the Home tab has loaded, the DIN ETHERGATE MK2 will resume operation.

Reset to Factory Default

The DIN ETHERGATE MK2 can be reset to factory defaults either through the web interface or by reset button.

Resetting via Web Interface

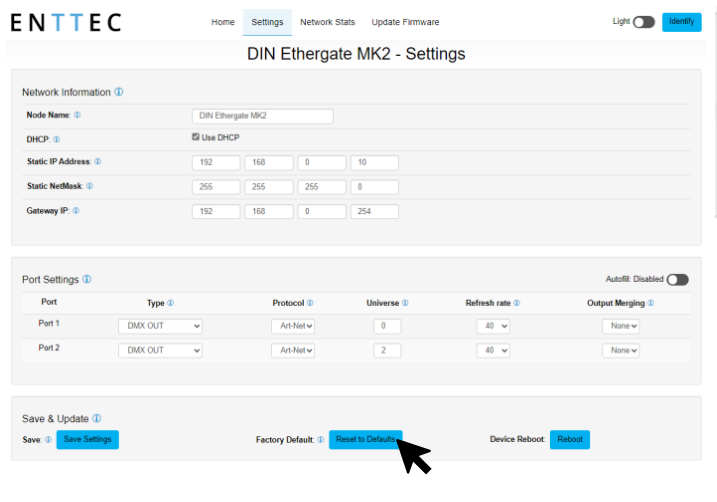

Navigate to the 'Factory Default' command located under the Settings tab in the DIN ETHERGATE MK2's web interface. Upon selecting this command, a pop-up will appear, as illustrated below:

Resetting via Reset Button

The reset button on the device restores the network configuration of the DIN ETHERGATE MK2 to factory defaults.

To reset to factory defaults, the following procedure must be performed:

1. Power off the unit.
2. Press and hold the Reset button.
3. While holding the Reset button, power up the unit
4. Keep holding the button for approximately 3 sec.
5. Release the Reset button after the LED turns yellow.
6. Power cycle the unit.

⚠️ Servicing, Inspection & Maintenance

• The device has no user serviceable parts. If your installation has become damaged, parts should be replaced.
• ⚡ Power down the device and ensure a method is in place to stop the system from becoming energized during servicing, inspection & maintenance.

Key areas to examine during inspection:

• Ensure all connectors are mated securely and show no sign of damage or corrosion.
• Ensure all cabling has not obtained physical damage or been crushed.
• Check for dust or dirt build up on the device and schedule cleaning if necessary.
• Dirt or dust buildup can limit the ability for a device to dissipate heat and can lead to damage.

The replacement device should be installed in accordance with all steps within the installation guide.

To order replacement devices or accessories contact your reseller or message ENTTEC directly.

Cleaning

Dust and dirt build up can limit the ability for the device to dissipate heat resulting in damage. It’s important that the device is cleaned in a schedule fit for the environment it is installed within to ensure maximum product longevity.

Cleaning schedules will vary greatly depending on the operating environment. Generally, the more extreme the environment, the shorter the interval between cleaning.

⚡ Before cleaning, power down your system and ensure a method is in place to stop the system from becoming energized until cleaning is complete.

• Do not use abrasive, corrosive, or solvent-based cleaning products on a device.
• Do not spray device or accessories. The device is an IP20 product.

To clean an ENTTEC device, use low-pressure compressed air to remove dust, dirt and loose particles. If deemed necessary, wipe the device with a damp microfiber cloth.

A selection of environmental factors that may increase the need for frequent cleaning include:

• Use of stage fog, smoke or atmospheric devices.
• High airflow rates (i.e., in close proximity to air conditioning vents).
• High pollution levels or cigarette smoke.
• Airborne dust (from building work, the natural environment or pyrotechnic effects).

If any of these factors are present, inspect all elements of the system soon after installation to see whether cleaning is necessary, then check again at frequent intervals. This procedure will allow you to determine a reliable cleaning schedule for your installation.

Package Contents

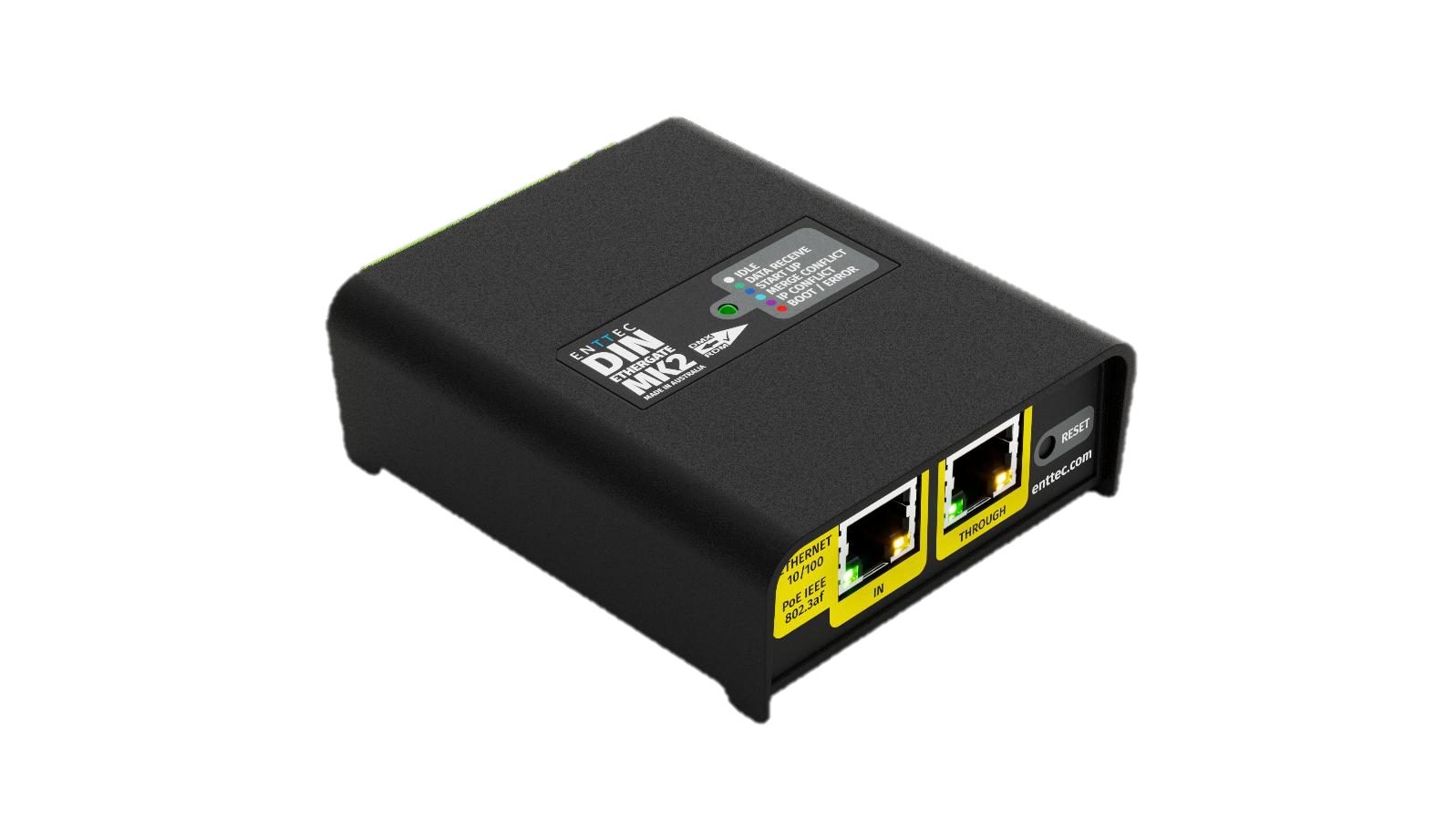

• DIN ETHERGATE MK2
• TS35 DIN-Rail clip and screws
• (Power supply is not included)

Ordering Information

For further support and to browse ENTTEC’s range of products visit the ENTTEC website.
